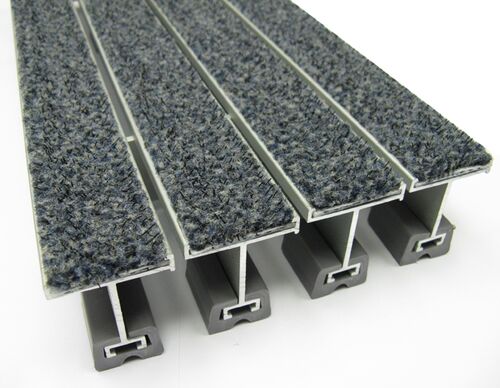

Aluminum Foot Grille – 1-5/8″ – Recessed Floor Mat
Perfec Roll-Up Grates are the best choice for heavy traffic areas. The rubber hinges soften noises while maintaining integrity against rolling loads of 1,000 LBS per wheel. Designed to allow more debris in a deeper pit plus the roll-up ability for easy cleaning.
Choose Your Options:
General Information
Perfec Grates
- Our Aluminum Foot Grille - 1-5/8" - Recessed Floor Mat features high end durability and performance.
- All Aluminum Recessed Floor Mats are Custom Made - each mat is made to order, not in stock.
- The actual grate for this type of recessed mat measures 1-5/8" in depth, however, there are several frames available to accommodate different recessed depths.
- The Aluminum Foot Grille - 1-5/8" - Recessed Floor Mat can handle rolling loads of up to 300lbs per wheel and are made from 6063-T52 aluminum spaced at 1-1/2" on center
- Drain Pans for aluminum grates are a great option to have for heavy rain fall areas.
- In order to give a proper price and/or quote we need specific information. See below for details.
- Each tread rail is secured with keylock bars placed on 6" centers - The keylocks are both mechanically locked in place and welded in place for maximum strength
- Notoriously dependable and are mats that can perform for decades. The inserts may require replacing, but the aluminum foot grille itself will last for a long time barring damage.
- The underside of the recessed foot grilles have thermoplastic foot pads to put a reduce "metal to concrete" noise where the mat rests on the recessed pit floor
- An Aluminum Foot Grille - 1-5/8" - Recessed Floor Mat is designed to allow dirt and moisture to fall below into the pit below so that it does not get tracked into the building
- Aluminum grilles do not roll up like other recessed aluminum mats, but can be periodically lifted out of the recess for cleaning
Traffic Direction
Aluminum Finishes
Tread Options
Carpet Inserts
Poly-Brush Colors
Vinyl Inserts
Frame Options
Frame 420 L & P – Level Bed
- The 420 Frame is designed to be set in wet concrete
- Lag bolts hold frame tightly in place after concrete sets
- Once the frame is set, the Recessed Foot Grille drops in place
- 1/2″ Gauge aluminum reveal
- Make certain to take thickness of finish floor into account when setting the 420 Frame
421 L & P Recessed Frames
- The 421 Frame is the stoutest Recessed Frame
- Allowing for a Recess depth of over 4″, with lag bolts and vertical cross supports
- The 421 Frame should be used when large amounts of liquids from rain and snow are anticipated.
- Make certain to take thickness of finished floor into account when setting frame 421
- Available with or without a drain pan
- Frames can be shipped ahead of mats upon request
421 L & P Recessed Frames
- The 421 Frame is the stoutest Recessed Frame
- Allowing for a Recess depth of over 4″, with lag bolts and vertical cross supports
- The 421 Frame should be used when large amounts of liquids from rain and snow are anticipated.
- Make certain to take thickness of finished floor into account when setting frame 421
- Available with or without a drain pan
- Frames can be shipped ahead of mats upon request
Frame 420/422 For Foot Grilles
- Available with or without a drain pan
- Specify: 420x423x422 with Pan or 420x423x422 Without Pan
- Allows for a deeper recess depth of 2-23/32″ depth
- Cross Supports under the Foot Grille allows for larger quantities of liquids to be retained
- Surface reveal is 1/2″ – Lag Bolts Hold Frame Fast
- Make certain to take thickness of finish floor into account when setting the 420-422 Frame
- Frames can be shipped ahead of mats upon request
