GRATEdesign Roll-up Grate 3/4″

Need help finding the right product? I’m sure we have a solution!

Call Toll Free: (833) 428-0461



Product Description

GRATEdesign roll-up grate is constructed of hollow extrusion rails joined by low-density polyethylene (LDPE) hinge. The cushion retained in the captive aluminum tread port, along with drainage holes, allows debris and moisture to flow through the grate.

Rail Material – Aluminum

Depth – 3/4″

Tread Spacing – 1-1/2″ on center

Tread Options – Premium Carpet, Rugged Scrub, Vinyl, Ribbed Runner, Eco Tread, Vinyl Abrasive or Brush

Rail Finish – Mill, Clear or Color Anodized

Frames – Level Bed

Rolling Load – 1,000 lbs/wheel

Uniform Load – 80,000 lbs/ft2

Warranty – 5 years

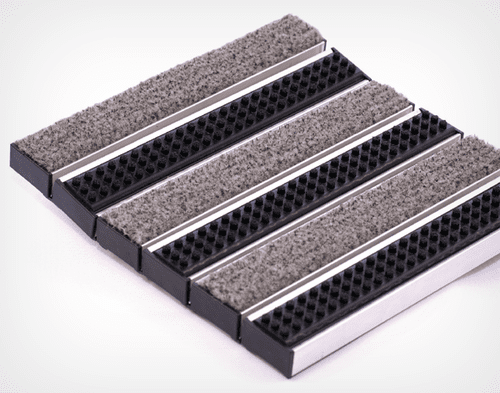

Dual Treads for Dual Purpose – Now offering the design flexibility to mix and match treads. Simply select treads for absorption, scraping or slip resistance.

PVC Free Hinges – Our PVC free, LDPE hinges raise the industry bar for performance in both flexibility and durability. Insist on LDPE hinges!

Roll Back for Easy Cleaning – Easily maintain your entry system by rolling back the entry floor grate for regular sweeping or vacuuming to extend the life of your system.

Tread Options – For colors Scroll down or click on your choice below

 Brush (Black Only)  EcoTread  Premium Carpet
 Ribbed Runner (Black Only)  Rugged Scrub  Vinyl
Vinyl Abrasive Aluminum Abrasive Serrated Aluminum

Rail Finish








Level Bed Mech. Fastened Frame Level Bed Cast-In Frame


EcoTread Colors –

Premium Carpet Colors –



Rugged Scrub Colors –

Vinyl Colors –

Vinyl Abrasive Colors –

Aluminum Abrasive Colors –
