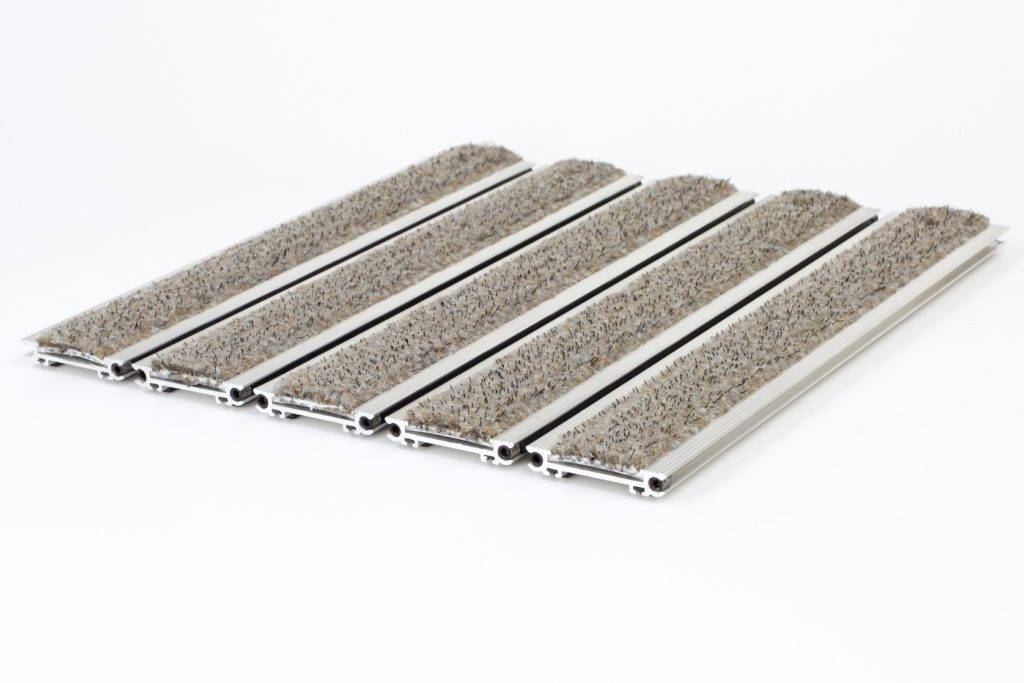

Vinyl Hinge Low-Profile Roll Up Mat 3/8″
The Vinyl Hinge Low Profile Roll Up series is similar to the Aluminum Hinge 3/8″ series, except it is quieter. It is an economical option that captures dirt, mud, moisture, and debris from foot traffic. Vinyl Hinge Low Profile Roll Up series mats are composed of aluminum rails connected by vinyl hinges with vinyl cushioned supports running the length of each rail. The Vinyl Hinge Low Profile Roll Up facilitates easy clean up—simply roll up and clean beneath.
Choose Your Options:
General Information
MB400 Series
- Vinyl Hinge Low-Profile Roll Up Mat 3/8″ is an ideal aluminum Entrance Mat System for Exterior or Interior entryways, vestibules, and foyers.
- Depth: 3/8″, with recessed “L” frame 7/16″ (level base).
- Rolling Load: 350 lbs per wheel
- LEED: Possible LEED- NC credits; MR credit 4(1-2 points) MR credit 5 (1-2 points) IEQ credit 5 (1 point)
- Warranty: 2 years
- A solid mat system with added vinyl cushion supports on the bottom of each tread blade.
- Are made from 6063-T52 corrosion resistant aluminum spaced at 2″ on centers.
- These indoor entry mats that can perform for many years and over time the inserts may require replacing, but the aluminum mat itself will last for a long time barring damage.
- Composed using 49% pre-consumer Recycled Content.
- The Vinyl Hinge Low-Profile Roll Up Mat 3/8″ are designed to allow dirt and moisture to fall below the surface so that it does not get tracked further into the building.
- These vinyl hinged floor mats can be outfitted with SURFACE or RECESSED frames as an additional option.
- Shipping time depends on the type of Metal Finish desired: Standard Mill takes 1-2 weeks, Anodized Finish can take 3-4 weeks.
Traffic Direction
Aluminum Finishes
Frame Options
L-Frame Recessed Application
- Use L Frame when the pit has already been formed.
- 1/2″ total depth, 7/16″ to 1″ bottom leg
- 1/4″ Gauge Aluminum surface reveal.
- Screw in place with tapcons or lead sinkers
- Recommended that screeding the pit floor to level with the horizontal leg of the frame profile
Cast in Place Application
- Use Cast in Place Frame when a pit has not been form; for wet pour applications.
- 1/2" Surface Reveal
Vinyl Ramp Surface Applications
- Beveled Vinyl Edge allows for surface mat use.
- 2″ x 3/8″ surface ramp.
- Edge is attached directly to the Roll up Mat
- Available with or without under-mat tongues upon request.
2" Vinyl Square Edge (VSE)
- Use when pit is irregular or out of square.
- Vinyl filler can be trimmed easily with a utility knife
- 7/16" Total depth
- When using Vinyl Square Edge filler on all sides, mat will be loose lay
Aluminum Ramp Surface Applications
- Beveled Aluminum Edge that can be permanently screwed into the floor with tapcons.
- Edge is not attached to the Roll up mat – Holds the mat in place.
- 1-3/8″ x 3/8″ surface ramp.
Aluminum Threshold
- Use for surface/recess installations to provide a flush transition from the entryway door threshold to the mat surface
- The frame does not require a leveling screed
Divider
- Use when area has a change of traffic direction
- Can also be used when mat is longer to separate mats in sections
- Also know as T-Divider or T-Strip
- Divider screws in floor with tap cons or sinkers
