Waterhog Eco Elite Roll Good Inlay Logo

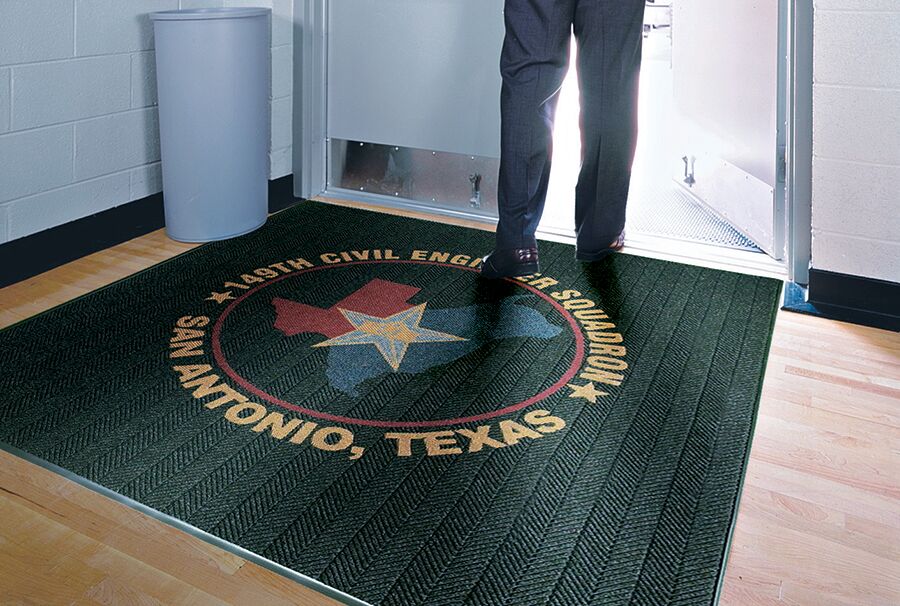

Waterhog Eco Elite Roll Good Inlay Logo Mats present a herringbone pattern for the background color and a berber pattern for the logo.  WaterHog Eco Elite Roll Goods Inlay mats are the ideal choice when performance AND appearance are of uppermost importance.  Great for complex military unit crests, school mascots or government seals when large mats or custom shapes are required.

Get A Quote

Description

LOGO SEARCH

WaterHog Eco Elite Roll Goods Inlay can be customized to feature your logo.  Waterjet technology allows us to achieve extreme precision to display for your logo.  Each design shape is cut from the background color and then logo colors are inlaid into the base mat and assembled much like a jigsaw puzzle. This process results in razor-sharp designs and the colors do not wear off.  Waterhog Eco Elite Logo mats are recommended for use in large entrance areas or in spaces where a custom configuration may be desired.  For a surface application, heavy duty edging can be applied to achieve ADA compliance.  Waterhog Eco Elite Logo mats can also be used in a recessed application for most shallow recesses of 1/2″ or less.  We recommend that the mat be “oversized” during fabrication to allow for onsite trimming.  Once the mat is cut to fit into the recess, it is recommended that the mat is adhered to the substrate for optimal performence.

  • Waterhog Eco Elite Roll Good Inlay Logo Mats present a herringbone pattern for the background color and a berber pattern for the logo.  WaterHog Eco Elite Roll Goods Inlay mats are the ideal choice when performance AND appearance are of uppermost importance.  Great for complex military unit crests, school mascots or government seals when large mats are required.
  • WaterHog Eco Elite Roll Goods Inlay can be made into custom sizes and shapes to fit most areas. Large areas and custom fits are not a problem
  • Reinforced rubber nubs under the herringbone pattern prevent pile from crushing and extend the performance life of the mat; solution-dyed fabric is fade-resistant
  • Waterhog Eco Elite Roll Good Inlay Logo floor mats are approximately 3/8″ thick and available in custom sizes from 3′ x 2′ to 12′ X 50′ with smooth rubber backing
  • Available with Rubber Edges for surface entrance mat applications or without Edging for use in a recessed application.
  • 17 logo colors and 7 background colors to choose from
  • Waterhog Eco Elite Roll Good Inlay Logo floor mats are the perfect door mats for high traffic areas – Indoor or Outdoor
  • Cleaning: WaterHog Eco Elite Roll Goods mats should be vacuumed regularly (daily in high-traffic areas; weekly in lower-traffic applications).  They can also be cleaned with an extractor or hosed off as necessary to remove heavy soil. Hang dry if possible and always make sure they are dry before placing them back in service.
  • When the floor mat is glued down, WaterHog Eco Elite Roll Goods mats are Heel and Spike proof
  • Easy installation and seaming procedures.
  • All WaterHog Eco Elite Roll Goods Logo door mats are considered as custom floor mats and can be made to virtually any size.
  • Common Use for WaterHog Eco Elite Roll Goods Mats and Logo Mats: Indoor/Outdoor Entrance Use,  Commercial Buildings, Hotels, Airports, Hospitals, Apartment Communities, Football/Hockey Locker Room flooring, or anywhere a durable logo mat is needed.





Color Options

Waterhog Eco Elite Roll Goods Inlay Logo colors

Specifications

SURFACE
Fiber: Solution-dyed PET (polyethylene terephthalate)
Weight: 30 ounces/yard2
Construction: Needle-punched
Design: Herringbone

Logo Material: Solution-dyed polypropylene
Weight: 52 ounces/yard2
Construction: Needle-punched

BACKING
Material: SBR rubber – smooth only
Thickness: 78-mil

OVERALL MAT THICKNESS: 3/8 inch (0.375″)

STANDARDS & TESTING

  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • Passes DOC-FF1-70 for the surface flammability of carpets

Cleaning Instructions

WaterHog Eco Elite Roll Goods mats should be vacuumed regularly (daily in high-traffic areas; weekly in lower-traffic applications).  They can also be cleaned with an extractor or hosed off as necessary to remove heavy soil. Hang dry and always make sure they are dry before placing them back in service.

Design Specifications

WaterHog Eco Elite Roll Goods Inlay mats are produced using an inlay process, where colored material is cut and pieced together by hand before pressing into rubber.  As a result, there are very strict design requirements for this product.  PMS color matching is not available.

Minimum Text Height: 3″ (includes lower case text)
Minimum Line Thickness: 3/8″
Any space between letters or design elements must be at minimum 3/8″
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

Gradients, tints, screens and transparencies are not supported and should not be used.

Available Sizes

Custom sizes are available in the following widths up to 50′ in length.  Please note that widths over 6′ are manufactured by seaming together two 6′ wide mats and trimming as needed.

  • 3′ widths
  • 4′ widths
  • 5′ widths
  • 6′ widths
  • 7′ widths
  • 8′ widths
  • 9′ widths
  • 10′ widths
  • 11′ widths
  • 12′ widths

The width must be in one of the whole foot increments listed above.

The minimum size for a custom roll goods mat is 3′ x 2′.
The maximum custom size is 12′ x 50′.

Available with smooth backing only.

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time.  Tolerable manufacturing size variance is 3-5%.

Literature

Waterhog Eco Elite Roll Goods Inlay Logo Literature
