Aluminum Hinge Low Profile Roll Up Floor Mat 3/8″
Protect flooring and improve workplace safety with a roll up, aluminum entrance mat! The Aluminum Hinge Low Profile Roll Up Floor Mat 3/8″ is an effective commercial entrance mat that reduces cleaning costs and prevents trips, slips, and falls.
Choose Your Options:
General Information
MB300 Series
- Aluminum Hinge Low Profile Roll Up Floor Mat 3/8″ is a popular aluminum Entrance Mat because of roll up ease during maintenance.
- Stable and solid mat system with added vinyl cushion supports on the bottom of each segment.
- Depth: 3/8″, with recessed “L” frame 7/16″ (level base).
- Rolling Load: 350 lbs per wheel
- LEED: Possible LEED- NC credits; MR credit 4(1-2 points) MR credit 5 (1-2 points) IEQ credit 5 (1 point)
- Warranty: 2 years
- Weight per Square Foot: 1.69 lbs

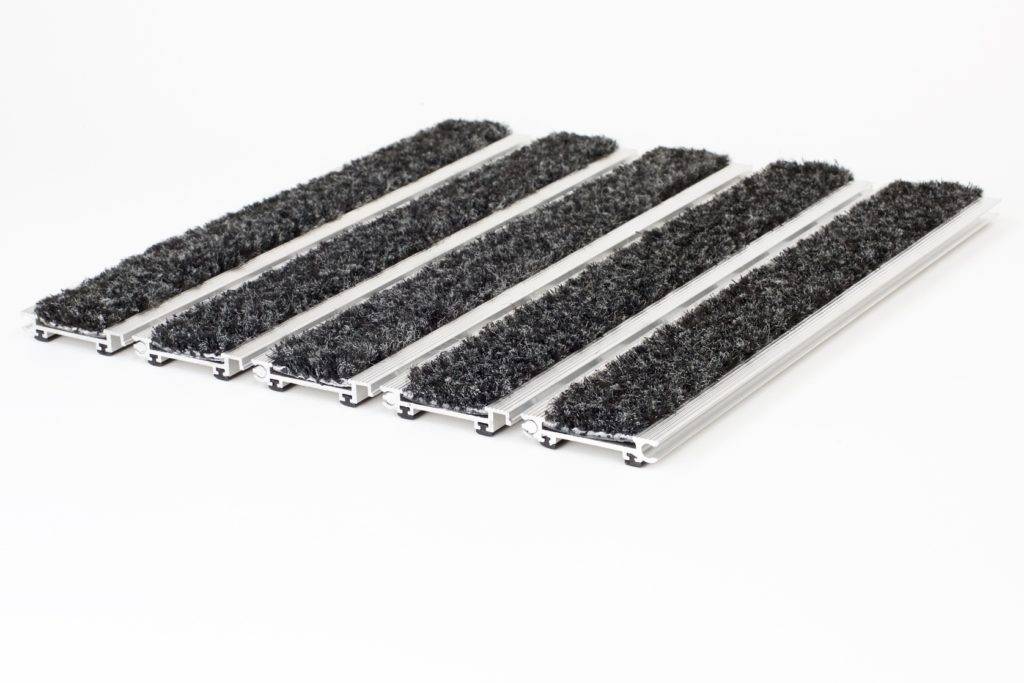

- Made from 6063-T52 aluminum spaced on 2″ centers, connected with aluminum hinge and 1" x 3/16" slotted holes for maximum drainage
- Aluminum Hinge Low Profile Roll Up Floor Mat 3/8″ are dependable entrance mats that can perform for decades. The inserts may require replacing after time, but the aluminum mat itself will sustain.
- Can be designed for Indoor or Outdoor use.
- Aluminum Hinge Low Profile Roll Up Floor Mat 3/8″ are composed using 49% pre-consumer Recycled Content.
- This low profile mat is designed to allow dirt and moisture to fall below the surface so that it does not get tracked into the building.
- Aluminum Floor Mat 3/8″ include SURFACE or RECESSED frame options.
- Shipping time depends on the type of Metal Finish desired: Standard Mill takes 1-2 weeks, Anodized Finishes can take 3-4 weeks.
- Also available as a Vinyl Hinged Mat. CLICK HERE
Traffic Direction
Aluminum Finishes
Frame Options
L-Frame Recessed Application
- Use L Frame when the pit has already been formed.
- 1/2″ total depth, 7/16″ to 1″ bottom leg
- 1/4″ Gauge Aluminum surface reveal.
- Screw in place with tapcons or lead sinkers
- Recommended that screeding the pit floor to level with the horizontal leg of the frame profile
Cast in Place Application
- Use Cast in Place Frame when a pit has not been form; for wet pour applications.
- 1/2" Surface Reveal
Vinyl Ramp Surface Applications
- Beveled Vinyl Edge allows for surface mat use.
- 2″ x 3/8″ surface ramp.
- Edge is attached directly to the Roll up Mat
- Available with or without under-mat tongues upon request.
2" Vinyl Square Edge (VSE)
- Use when pit is irregular or out of square.
- Vinyl filler can be trimmed easily with a utility knife
- 7/16" Total depth
- When using Vinyl Square Edge filler on all sides, mat will be loose lay
Aluminum Ramp Surface Applications
- Beveled Aluminum Edge that can be permanently screwed into the floor with tapcons.
- Edge is not attached to the Roll up mat – Holds the mat in place.
- 1-3/8″ x 3/8″ surface ramp.
Aluminum Threshold
- Use for surface/recess installations to provide a flush transition from the entryway door threshold to the mat surface
- The frame does not require a leveling screed
Divider
- Use when area has a change of traffic direction
- Can also be used when mat is longer to separate mats in sections
- Also know as T-Divider or T-Strip
- Divider screws in floor with tap cons or sinkers
Product Downloads

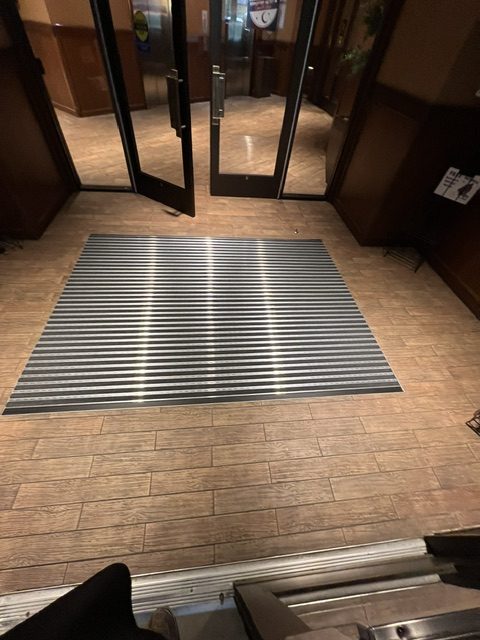

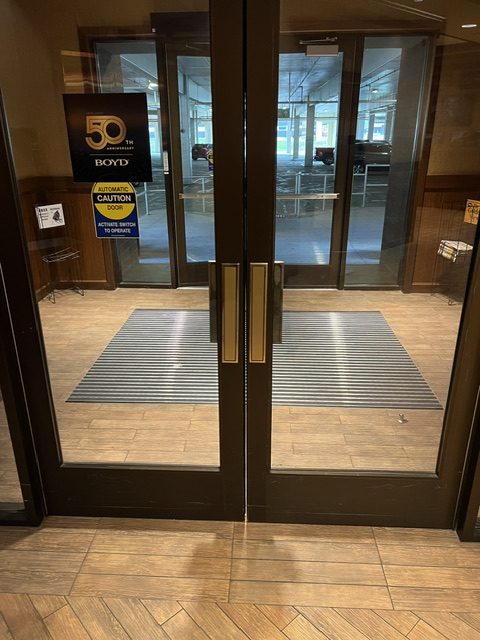

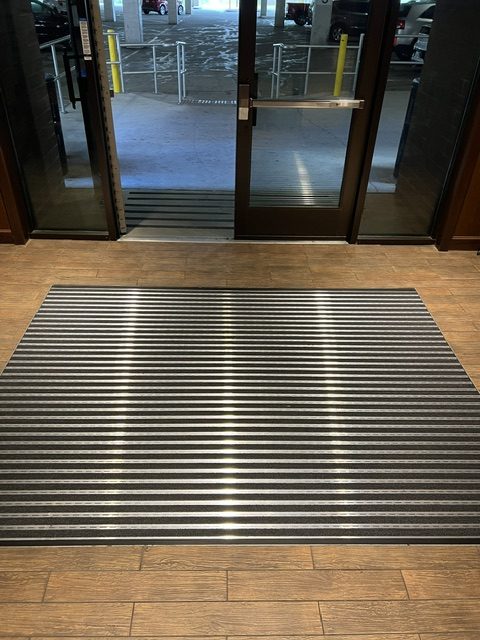

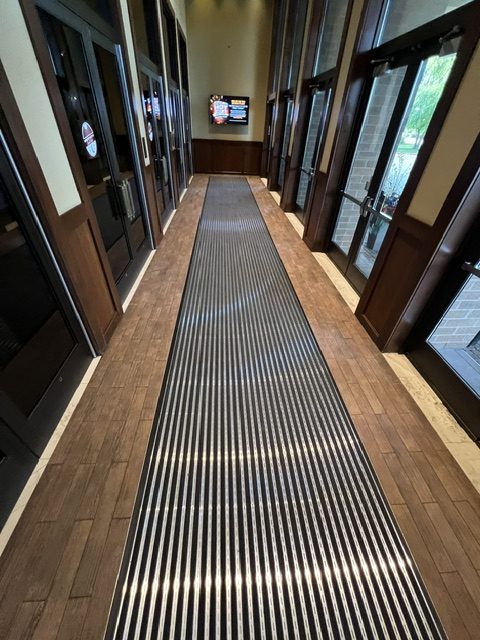

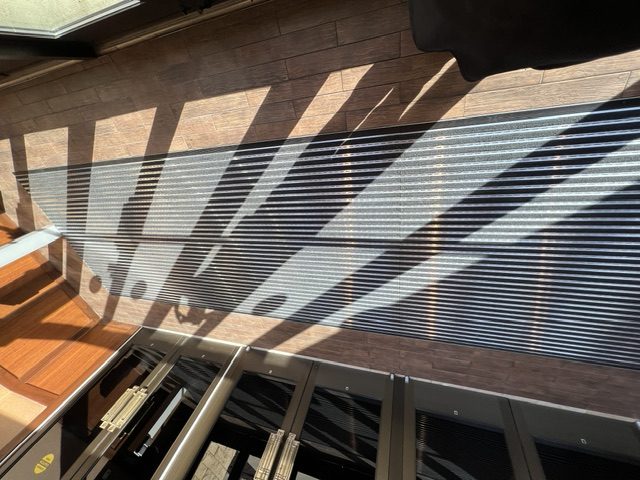

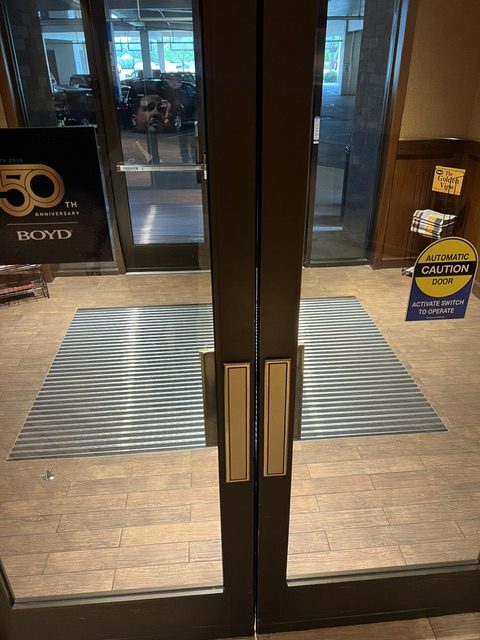

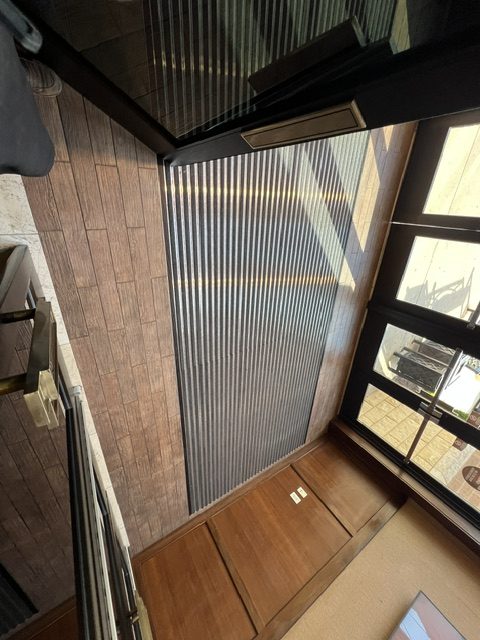

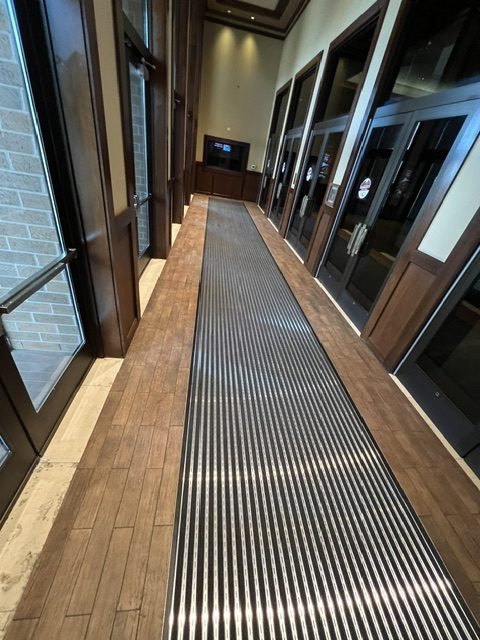

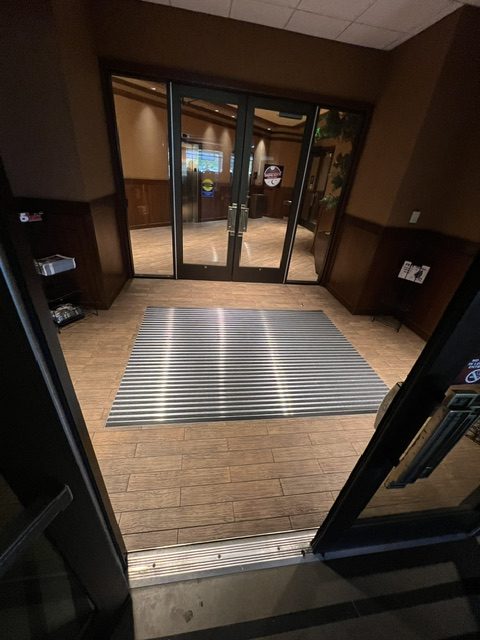

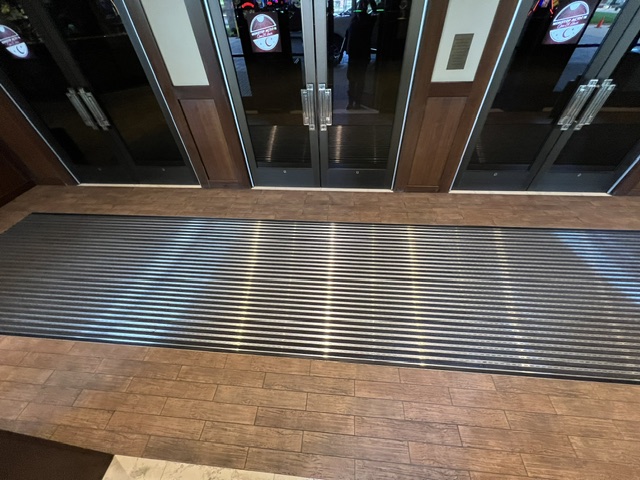

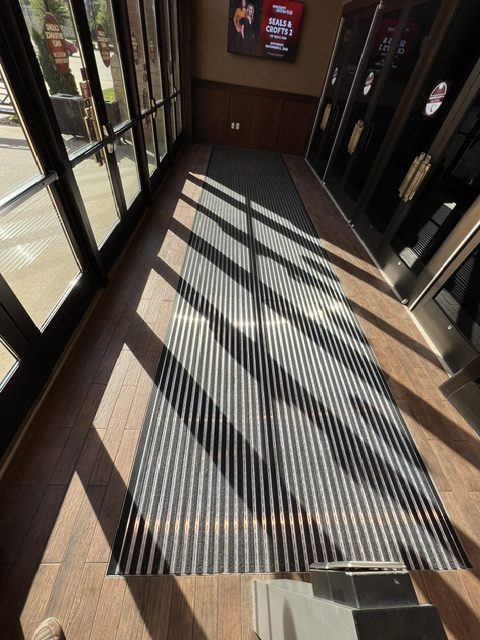

Photo Gallery
