Recessed Floor Mats 3/4″ Aluminum Roll Grates

Perfec Roll-Up Grates are the best choice for heavy traffic areas. The rubber hinges soften noises while maintaining integrity against rolling loads of 1,000 LBS per wheel. Designed to allow more debris in a deeper pit plus the roll-up ability for easy cleaning.

Request a Quote

833-428-0461

Weight Limit

1,000 lbs
Per Wheel Load

Depth

3/4"

Rail Spacing

1 - 1/2" on Center

Weight Per Sq. Ft.

lbs

Roll Up Capability

Yes

Warranty

2 Years

General Information – Perfec Roll-Up Grates

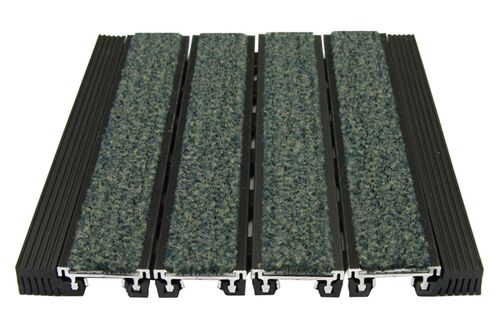

Recessed Floor Mats – 3/4″ Aluminum Floor Grates are a heavy duty recessed mat that features the rugged benefits of a recessed foot grille combined with the easy maintenance of a roll up aluminum mat.
3/4″ Aluminum Floor Grates are CUSTOM Mats, each roll grate is custom made to order.
The 3/4″ thick Recessed Roll Grate sets into a recess that is deep enough to retain the dirt and liquids that accumulate in high traffic entrances
Able to withstand rolling loads up to 1,000 lbs per wheel – Making the Roll Grate our heaviest duty aluminum mat.
Maintenance of the recessed metal floor grate walk off matting is easy – simply roll the mat back to clean – No need to remove the mat from the pit for cleaning.
Thermoplastic foot pads on the underside of the roll grates prevent “metal to concrete” noise
Every part of the mat can be replaced or repaired should the mat become damaged.
Visually, the metal entrance floor grate looks like an aluminum foot grille but features rubber hinges which allow the mat to roll up for cleaning like a 3/8″ thick aluminum roll up mat
Available with two different frame options. 448 or 450 See Picture
**Lead time to fabricate the mats depends on the type of METAL FINISH desired:Standard Mill takes 1-2 weeks, Anodized Finish take 3-4 weeks. **

Ordering Process

Select Aluminum Finish

Choose from a variety of metal finishes.

Select Tread Option

Choose the insert that best fits your needs.

Select Frame

Each model has an array of frame options for different applications.

Step 1:

Aluminum Finishes

Select a finish for your product from the options that you see below.

Step 2:

Tread Options

Below, you'll find an array of insert options.

PLEASE NOTE: Colors are computer generated and do not accurately match actual insert colors. Please refer to actual color samples.

Step 3:

Frame Options

Below, you'll find a selection of frame options for this product.

L-Frame Recessed Application

Use L Frame when the pit has already been formed.
1/2″ total depth, 7/16″ to 1″ bottom leg
1/4″ Gauge Aluminum surface reveal.
Screw in place with tapcons or lead sinkers
Recommended that screeding the pit floor to level with the horizontal leg of the frame profile

Cast in Place Application

Use Cast in Place Frame when a pit has not been form; for wet pour applications.
1/2" Surface Reveal

Vinyl Ramp Surface Applications

Beveled Vinyl Edge allows for surface mat use.
2″ x 3/8″ surface ramp.
Edge is attached directly to the Roll up Mat
Available with or without under-mat tongues upon request.

Aluminum Ramp Surface Applications

Beveled Aluminum Edge that can be permanently screwed into the floor with tapcons.
Edge is not attached to the Roll up mat – Holds the mat in place.
1-3/8″ x 3/8″ surface ramp.
