General Information
GB200 Series
- Roll Up Tread 1/2″ recessed floor matting is a strong low profile entrance system that provides 25% more surface wiping area then other Aluminum mats.
- Our Roll Up Tread 1/2″ Recessed Entry Mats are Custom Made – There may be common sizes, but each mat is made to order.
- The metal portion of the grate for this type of recessed mat measures 1/2″ in depth.
- Our Roll Up Tread 1/2″ Recessed Floor Mat can handle rolling loads of up to 750 lbs per wheel and are made from 6063-T52 aluminum spaced at 1-1/2″ on center.
- The Roll Up Tread 1/2″ – Recessed Floor Mat is notoriously dependable and are mats that can perform for decades. The inserts may require replacing, but the mat itself will last for a long time barring damage.
- Offers a variety of different insert treads.
- Roll Up Tread 1/2″ can be used for Indoor or Outdoor recessed entrance mats.
- Recessed door mats made from 6063-T52 corrosion resistant Aluminum.
- Weather resistant hinges and foot pads remain flexible through time giving this mat longevity.
- 38.3% pre-consumer Recycled Content.
- Roll Up Tread 1/2″ Recessed Door Mat is designed to allow dirt and moisture to fall below the surface so that it does not get tracked into the building.
- A solid 1/8″ thick vinyl “T” profile footer runs along the full length and width of each section to help provide a low impact cushion for foot and cart traffic.
- These recessed mats include an optional 1/2″ x 1-1/2″ x 1/16″ L-shaped aluminum Frame.
- LEED: Possible LEED- NC credits; MR credit 4 (1-2 points) MR credit 5 (1-2 points) IEQ credit 5 (1 point)
- Lead time depends on the type of Metal Finish desired for low profile entry mat: Standard Mill takes 1-2 weeks, Anodized Finish can take 3-4 weeks.
Frame Options
Choose the right frame and mounting options for the perfect installation.
L-Frame Recessed Application
- Use L Frame when the pit has already been formed.
- 1/2″ total depth, 7/16″ to 1″ bottom leg
- 1/4″ Gauge Aluminum surface reveal.
- Screw in place with tapcons or lead sinkers
- Recommended that screeding the pit floor to level with the horizontal leg of the frame profile
Aluminum Ramp Surface Applications
- Beveled Aluminum Edge that can be permanently screwed into the floor with tapcons.
- Edge is not attached to the Roll up mat – Holds the mat in place.
- 1-3/8″ x 3/8″ surface ramp.
Aluminum Threshold
- Use for surface/recess installations to provide a flush transition from the entryway door threshold to the mat surface
- The frame does not require a leveling screed
Photo Gallery

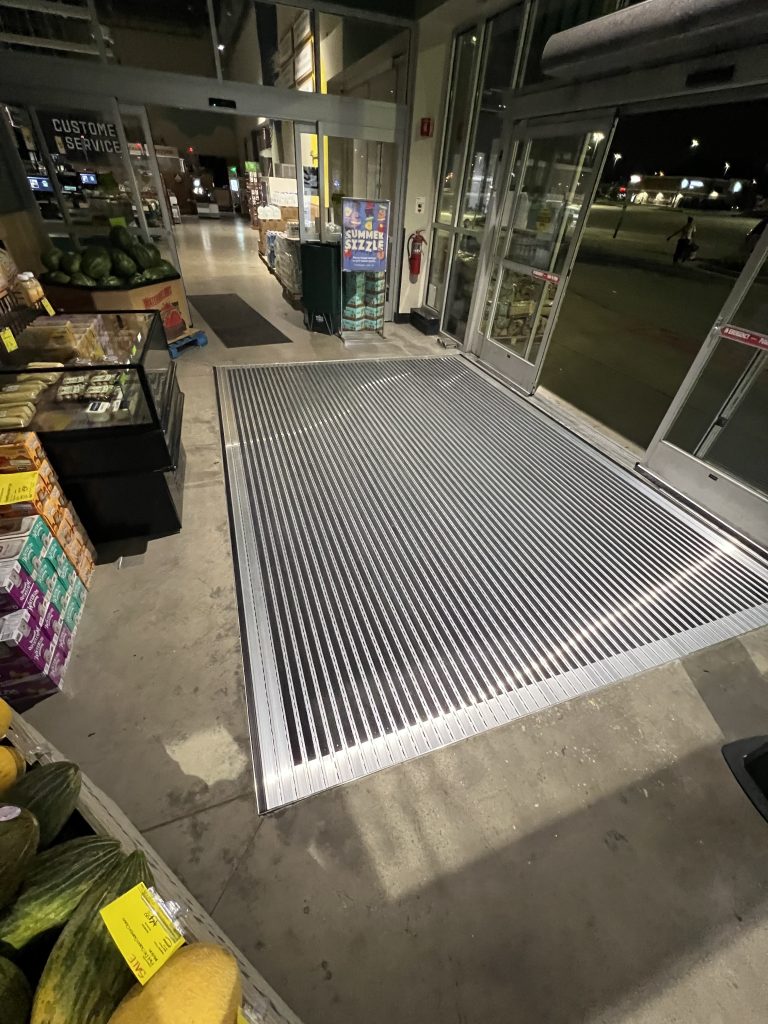

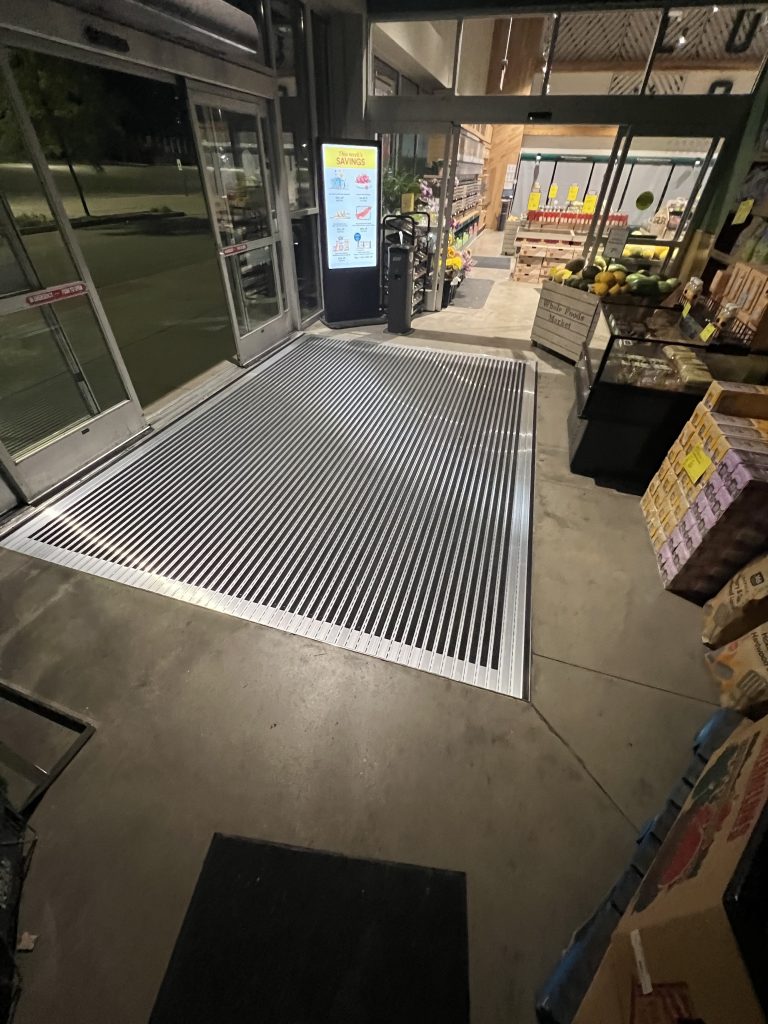

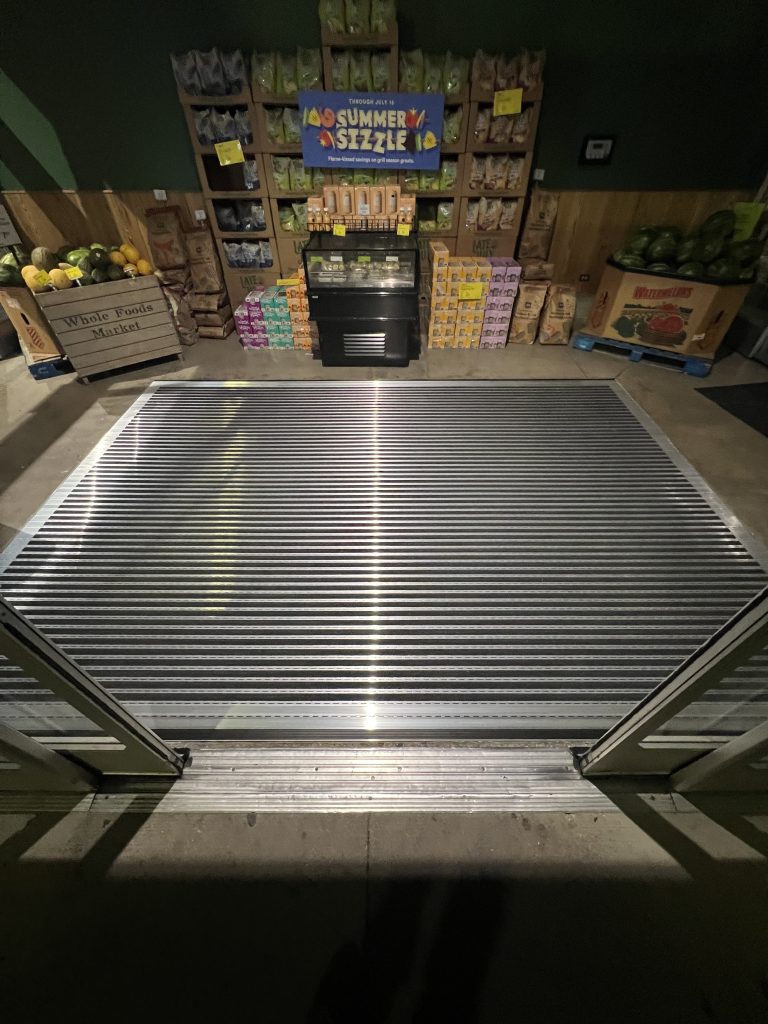

Images of Roll Up Tread 1/2" GB-200
